OF 160 ELGi Oil Free Screw Air Compressor, 250 hp

Send Inquiry

Request To Call Back

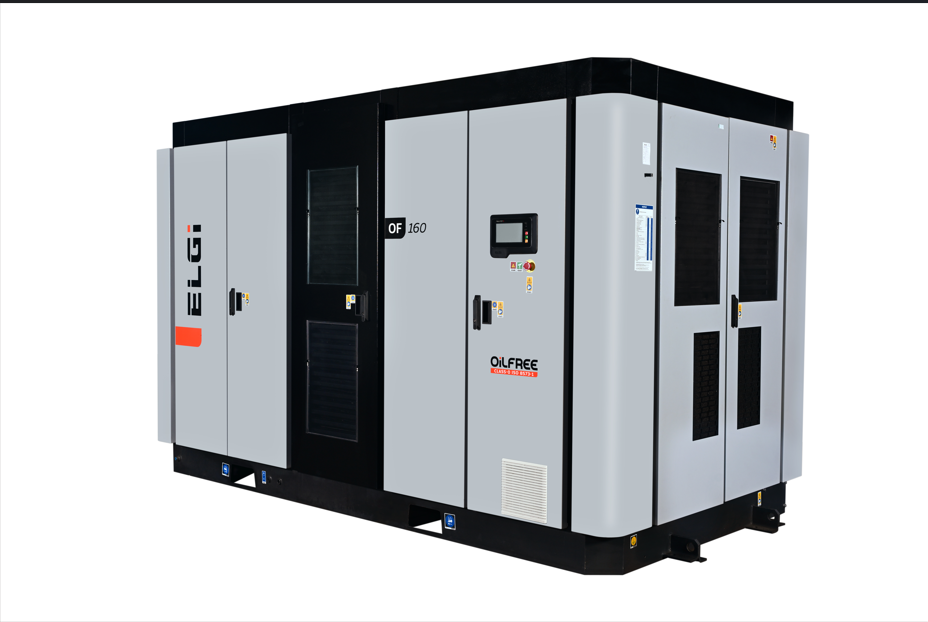

OF 160 ELGi Oil Free Screw Air Compressor, 250 hp

Get a Price/Quote

MOQ : 1 Unit

OF 160 ELGi Oil Free Screw Air Compressor, 250 hp Specification

Control System
Microprocessor based controller

Weight
~6500 kg

Flow Rate
32.3 m3/min (at 7 bar)

Motor Power
250 HP

Refrigerant Type
R134a / R407C (as applicable for dryer)

Cooling Method
Air / Water Cooled

Noise Level
<75 dB(A)

Power Rating
250 HP / 185 kW

Filtration Grade
Class 0, ISO 8573-1

Phase
Three Phase

Drive Type
Direct Drive

Pressure Capacity
Up to 10 bar

Frequency
50 Hz

Type Of Compressor
Oil Free Screw Compressor

Allied Equipment
Dryer, Receiver, Filter

Configuration
Stationary

Power Source
Electric

Silent
Yes

Lubrication Type
Oil Free

Voltage
415 V

Driven Mode
Electric Motor

Air Tank Capacity
As per system design (external receiver optional)

Application
Pharmaceutical, Food & Beverage, Electronics, Healthcare, Textiles, Packaging industries

Discharge Outlet Size
DN100 flange

Display
Digital Touch Panel

Service Accessibility
Three-side maintenance access

Air Quality Standard
ISO 8573-1 Class 0 Oil Free

Enclosure Protection
IP55

Safety Features
Overload & short circuit protection

Ambient Temperature Range
Up to 50C

Delivery Condition
Assembled

About OF 160 ELGi Oil Free Screw Air Compressor, 250 hp

ELGi is amongst the few air compressor manufacturer with an in-house designed and manufactured oil-free airend. ELGi's oil-free range of air compressors provides class zero oil-free air with leading energy efficiency, reliability, and low operating costs supported by a Best-in-class warranty. Oil-free air compressors, also known as dry screw air compressors, are used for applications like color coating, electronic chip manufacturing, automated assembly lines and many more where maintaining air quality is critical.

Optimized Oil-Free Air for Sensitive Applications

The OF 160 ELGi Compressor delivers ISO 8573-1 Class 0 certified oil-free air, essential for industries like food & beverage, pharmaceuticals, and electronics. This eliminates risks of product contamination, ensuring high-quality production environments. Its robust build, air/water cooling options, and sophisticated filtration provide a safe and pure air supply, making it ideal for applications where uncompromising air quality is required.

Effortless Operation and Maintenance

Equipped with a digital touch panel and microprocessor-based controls, the compressor simplifies monitoring and management. The three-side accessible design ensures convenient routine service, while built-in overload and short circuit protections enhance operational safety. Its quiet operation (under 75 dB(A)) makes for a conducive workspace, while direct drive ensures reliable, energy-efficient performance over time.

FAQ's of OF 160 ELGi Oil Free Screw Air Compressor, 250 hp:

Q: How does the OF 160 ELGi Oil Free Screw Air Compressor ensure oil-free compressed air?

A: This compressor is designed with advanced oil-free screw technology and certified according to ISO 8573-1 Class 0 standards, ensuring that the air delivered is completely free of oil contamination. This is vital for applications where even minimal oil presence can affect product quality.

Q: What industries benefit the most from using this compressor model?

A: Industries including pharmaceuticals, food & beverage, healthcare, electronics, textiles, and packaging benefit greatly from this compressor, as they require consistently high air purity and reliable performance for sensitive processes.

Q: When should scheduled maintenance be performed on the OF 160 ELGi compressor?

A: Maintenance intervals depend on operating hours and application demands. However, the compressor's digital touch panel and microprocessor controller provide timely service notifications, helping users plan preventive maintenance efficiently to maximize uptime and equipment lifespan.

Q: Where can this compressor be installed, given its ambient temperature capability?

A: With its robust design for ambient temperatures up to 50C, and IP55 enclosure protection, this compressor is suitable for demanding environments found in industrial facilities across India and similar climates. Both air and water cooling configurations are available, enhancing installation versatility.

Q: What process does the compressor use to maintain air quality and operational safety?

A: The OF 160 ELGi utilizes multiple filtration stages, optional dryers, and overload/short circuit protection in its electrical circuits. Additionally, its advanced microprocessor controls continuously monitor system status, safeguarding against unsafe operating conditions while sustaining ISO Class 0 air quality standards.

Q: How can users benefit from the digital touch panel and three-side maintenance access?

A: The intuitive digital touch panel makes it easy to monitor performance metrics and receive maintenance alerts, reducing the chance of downtime. The three-side accessible enclosure design streamlines servicing, optimizing operational productivity and minimizing maintenance time.
