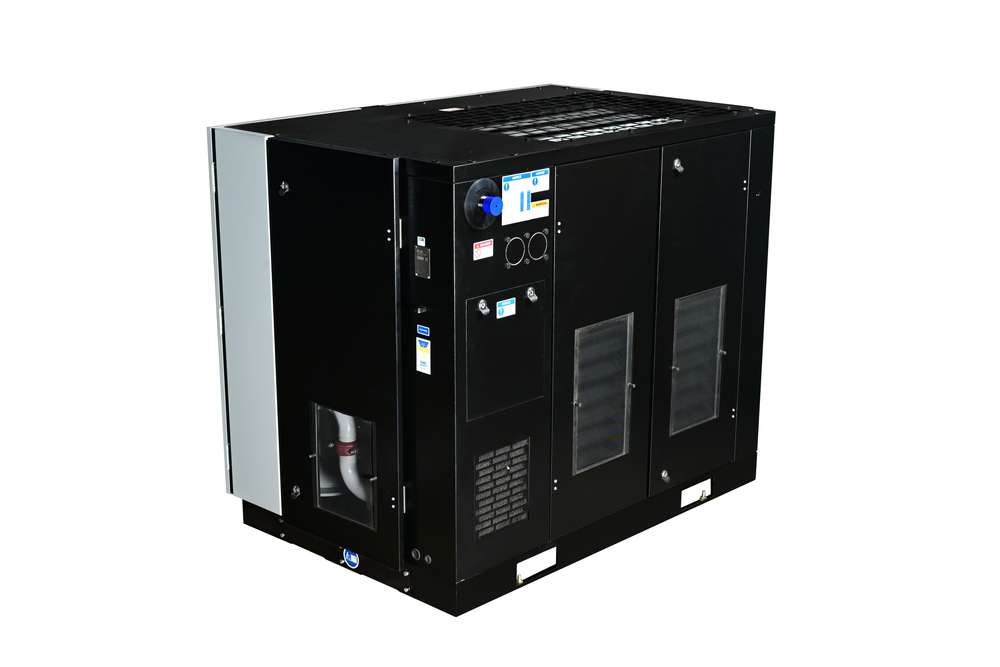

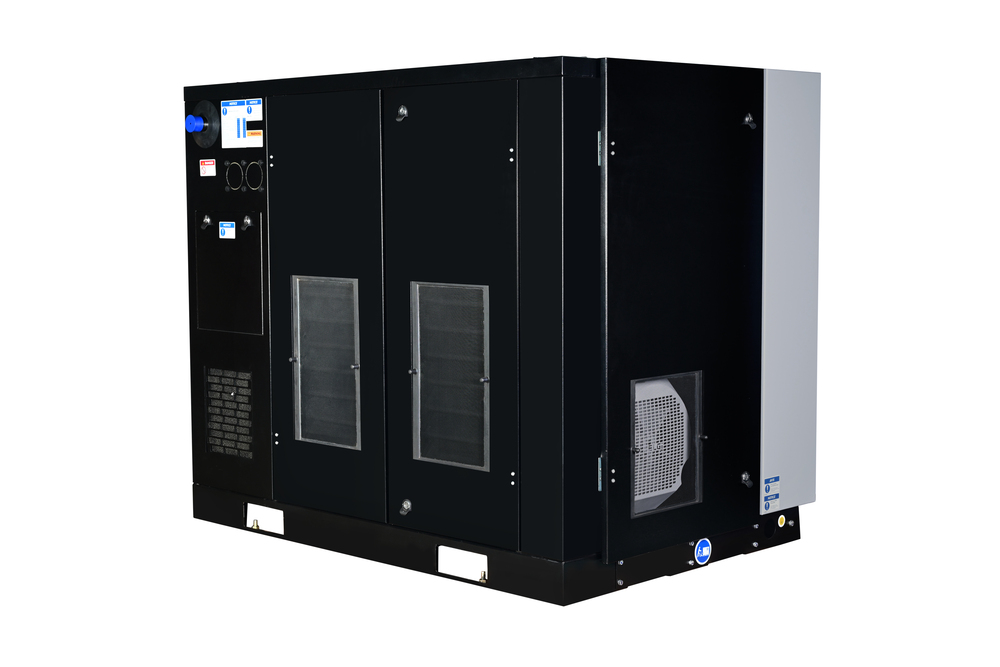

EQ DM ELGi Rotary Screw Air Compressor, with Demand=Match

Send Inquiry

Request To Call Back

EQ DM ELGi Rotary Screw Air Compressor, with Demand=Match

Get a Price/Quote

MOQ : 1 Piece

EQ DM ELGi Rotary Screw Air Compressor, with Demand=Match Specification

Power Rating
11 kW

Phase
Three Phase

Pressure Capacity
7.5 bar

Control System
Microprocessor Based

Cooling Method
Air Cooled

Noise Level
67 dB(A)

Frequency
50 Hz

Drive Type
Direct Drive

Flow Rate
66 CFM

Weight
670 kg

Refrigerant Type
R407C

Motor Power
15 HP

Filtration Grade
Pre, Fine, Carbon

Type Of Compressor
Rotary Screw Air Compressor

Allied Equipment
Dryer, Filter, Receiver

Configuration
Stationary

Power Source
Electric

Silent
Yes

Lubrication Type
Oil Lubricated

Voltage
415 V

Driven Mode
Belt Driven

Air Tank Capacity
500 Litres

Automatic Drain System
Yes

Discharge Outlet Size
1 inch

Vibration Level
<2.5 mm/s

Service Interval
4000 hours

Color
ELGi Standard Grey / Orange

Display Type
Digital Panel

Safety Features
High Temperature Protection, Overload Protection

Protection Class
IP55

Installation Type
Floor Mounted

Standard Accessories
Auto Drain Valve, Safety Valve

Starting Method
Star Delta

Model
EQ DM series

Relative Humidity Range
<90% non-condensing

Compressor Block
Integrated Design for Energy Efficiency

Ambient Temperature Range
0C to 45C

About EQ DM ELGi Rotary Screw Air Compressor, with Demand=Match

The ELGi EQ Series offers unmatched reliability, built tough for a long-lasting performance. Backed by a best-in-class warranty and requiring minimal maintenance, it stands out as a reliable air compressor for industries where size, reliability, and cost are paramount.

EQ Series sets the standard for excellence in compressed air maintenance, delivering exceptional value for small and medium enterprises (SMEs). When you need a reliable compressor that won't break the bank, the EQ Series is your ideal choice.

Compressed air demand in factories is never constant. This mismatch leads to energy waste, frequent cycling, and reduced system stability. ELGi Demand=Match is a breakthrough solution that adds dynamic intelligence to fixed-speed compressors, automatically adjusting delivery to match real-time plant demand. The result is energy savings, smoother operation, and enhanced reliability.

Optimized Energy Efficiency and Performance

The EQ DM series features a highly efficient integrated compressor block and a direct drive system, resulting in significant energy savings and consistent operation. The 15 HP air-cooled rotary screw compressor reliably provides 66 CFM at 7.5 bar, making it suitable for continuous, demanding applications.

Advanced Digital Control and Safety

This model incorporates a user-friendly digital panel and a microprocessor-based control system for precise monitoring and automation. Safety is built-in with overload and high temperature protection, ensuring reliable performance and extended lifespan in ambient temperatures up to 45C.

Comprehensive Accessory Support and Ease of Use

Standard accessories such as the automatic drain valve, safety valve, and compatibility with dryers, filters, and receivers add versatility to the installation. Floor mounting and silent operation (67 dB(A)) make it ideal for manufacturing, service, and export settings.

FAQ's of EQ DM ELGi Rotary Screw Air Compressor, with Demand=Match:

Q: How does the integrated design of the compressor block enhance energy efficiency in the EQ DM ELGi Rotary Screw Air Compressor?

A: The integrated design reduces transmission losses by combining components, streamlining power flow directly from the motor to the compression element. This enhances energy conversion efficiency, lowers operational costs, and improves reliability over time.

Q: What are the main benefits of using the digital panel and microprocessor-based control system?

A: The digital panel allows for real-time monitoring, fault diagnostics, and easy control of compressor functions. The microprocessor ensures precise regulation of operations, supporting user-friendly service intervals and minimizing downtime.

Q: When is it necessary to perform maintenance on this compressor, and what is the recommended service interval?

A: Routine maintenance should be performed after every 4000 operating hours, as recommended by the manufacturer. This ensures optimal performance, long system life, and prevents unexpected breakdowns.

Q: Where can the EQ DM ELGi Rotary Screw Air Compressor be installed?

A: This compressor is designed for stationary, floor-mounted installations in industrial or commercial settings. With its IP55 protection class and robust build, it is suitable for indoor environments within a temperature range of 0C to 45C and relative humidity under 90% non-condensing.

Q: How does the automatic drain system benefit the operation process?

A: The automatic drain valve expels accumulated condensate from the air receiver and system without manual intervention, improving compressor efficiency, air quality, and reducing maintenance requirements.

Q: What safety features are included, and how do they protect the equipment?

A: This model is equipped with high temperature and overload protection. These systems automatically shut down the compressor if critical thresholds are exceeded, preventing equipment damage and enhancing operational safety.

Q: What allied equipment can be used with this compressor, and what additional value do they provide?

A: Allied equipment such as dryers, filters, and air receivers can be integrated for cleaner, drier air delivery and improved system efficiency. These accessories help protect downstream equipment and ensure consistent air quality in industrial processes.
